Applications
Almost all types of liquid or paste products that can be packed in a pouch can be filled on a FlexiMach SUP machine: food and beverages, animal feeds/pet food, detergents, cosmetics, chemical products, etc.
Features

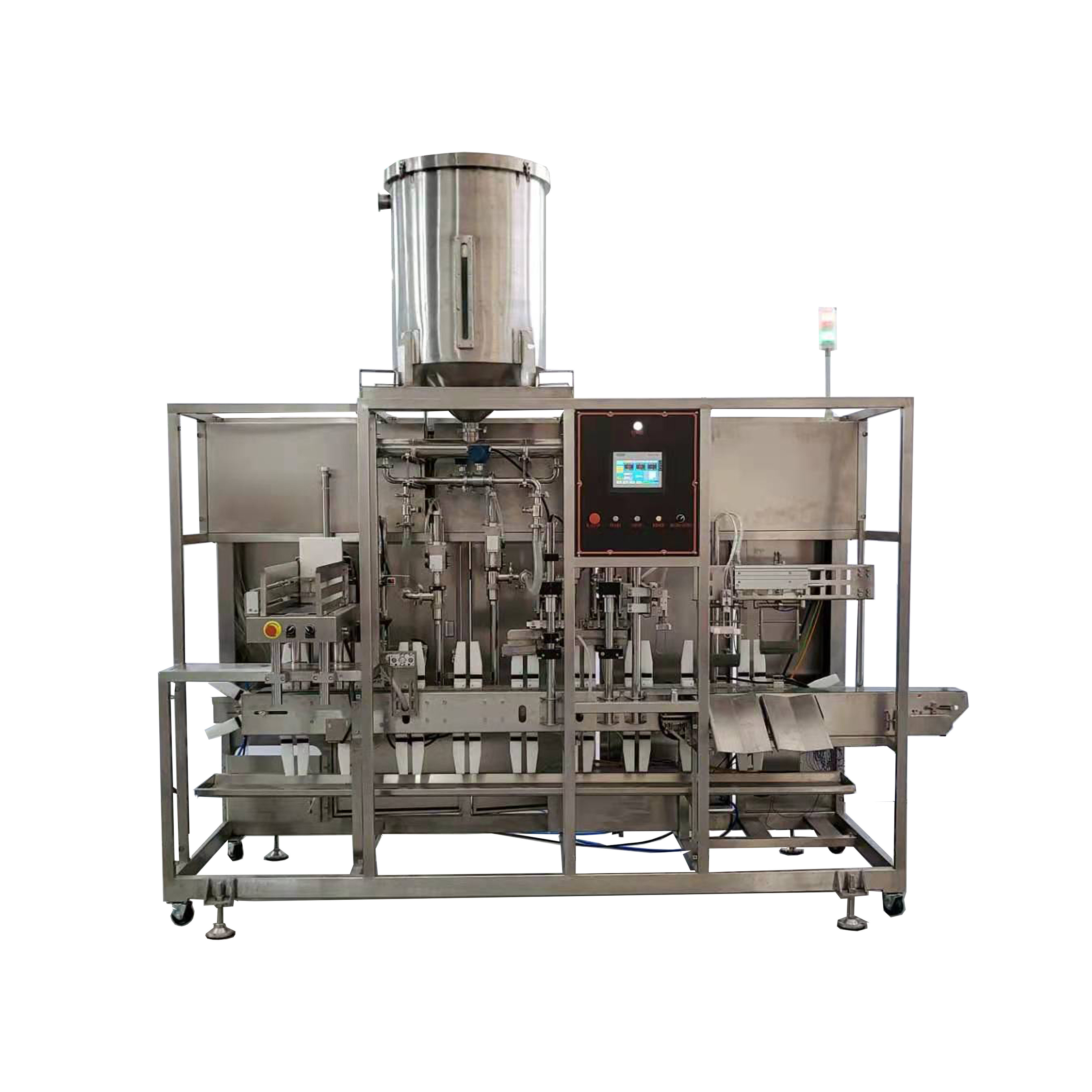

1.FM-1000/2000 SUP Series include Simplex-Duplex-Triplex-Quadro Version
2.Packing speed could be 30 to 120ppm due to different version
3.Total wash down design, waterproof grade.
4.Can work in extreme condition.
5.Optional：On-line weighing and auto correction of filling weight.
6.The entire machine is all made up of 304 stainless steel
7.Branded OutSourcing components
8.User Friendly and Easy Maintenance
Parameters
Model | FM-1000 | FM-2000 |
Filling range | 250-1000ml | 250-2000ml |
Pouch width | 80-180mm | 80 - 220 mm |
Pouch height | 100-300mm | 100 - 350 mm |
Pouch gusset | 35-90mm | 30 - 110 mm |
Pouch Shape | Stand up pouch |
Version | Speed(ppm) |
Simplex | 20-40 | 20-30 |
Duplex | 40-70 | 40-60 |
Triplex | 60-80 |
|
Quadro |
|
|
Bag samples
stand up pouches with spout, ZIP, valve,hand-held hole
Option

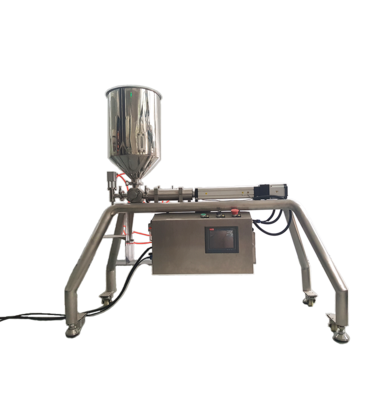

Filling :1.Flow meter for liquid 2.Servo piston pump for vicious paste

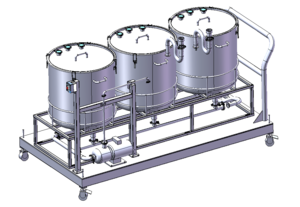

SEMI AUTOMATIC CIP SYSTEM
Video Link
Youtube： https://www.youtube.com/watch?v=08qWbXlLXy8
